CK-SX64-PAL

390.00Kr

Denna produkt finns förnärvarande inte i lager

Produkt information

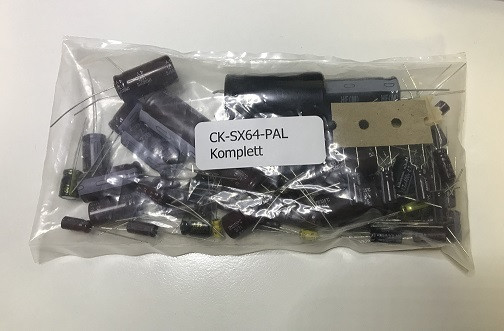

Kondensatorkit till SX64 PAL

SX-64 CPU PCB #250408-01 #251102 REV.A (PAL/NTSC)
11 x 10uF/50V (C3,C15,C16,C17,C21,C23,C26,C30,C36,C39,C47)

I/O PCB #250409-01 #251106 REV.A (PAL/NTSC)
2 x 10uF/50V (C12,C13)

DISK CONTROL PCB #250410-01 #251433B REV.A (PAL/NTSC)
1 x 1uF/50V (C31) Värde sett på kort (Fel värde i schema 100uF/16V)
1 x 3.3uF/50V (C3)
3 x 10uF/50V (C32,C33,C18)

POWER SUPPLY #250623    (Mitsumi GCMK-65X) 230V
4 x 4.7uF/50V (C28,C31,C34,C27) C28 kan vara keramisk eller poly och behöver då inte bytas
2 x 10uF/50V (C29,C40)
1 x 100uF/50V (C11)
1 x 220uF/400V (C7)
2 x 1000uF/16V (C21,C24)
1 x 2200uF/25V (C17)
1 x 3300uF/25V (C19)
1 x 4700uF/25V (C14)

MONITOR BOARD GCMK-81X Lilla kortet på sidan (PAL)
1 x 0.22uF/50V (C305)
5 x 0.47uF/50V (C202,C208,C209,C214,C304)
1 x 1uF/50V (C321)
1 x 2.2uF/50V (C315)
1 x 3.3uF/50V (C216)
3 x 10uF/50V (C205,C215,C318)
1 x 47uF/25V (C219)
1 x 220uF/25V (C310)
2 x 1000uF/16V (C217)

MONITOR BOARD TRC-1223A (PAL)
1 x 0.22uF/50V (C413)
1 x 0.47uF/50V (C511)
1 x 0.47uF/100V (C528) *BP* bipolär!
1 x 1uF/50V (C911)
3 x 1uF/50V (C401,C404,C601) *BP* bipolär!
1 x 3.3uF/50V (N/A)    Baksidan av kortet (4.7uF/25V funkar med)
2 x 4.7uF/50V (C501,C507)
1 x 4.7uF/400V (C525)
3 x 10uF/50V (C407,C603,C604)
1 x 10uF/63V (C913) *BP* bipolär!
3 x 47uF/25V (C912,C406,C903) C912=47uF/6.3V C903=47uF/25V
6 x 100uF/50V (C411,C531,C532,C607,C610,C901) C901=100uF/35V
1 x 220uF/25V (C611)
5 x 470uF/35V (C414,C523,C608,C904,C905) C904=470uF/35V C905=470uF/35V
2 x 1000uF/35V (C412,C524)
2 x 2200uF/25V (C913,C914)
Totalt 81st

Produktkod: CK-SX64-PAL
