CK-SX64-NTSC

390.00Kr

Denna produkt finns förnärvarande inte i lager

Produkt information

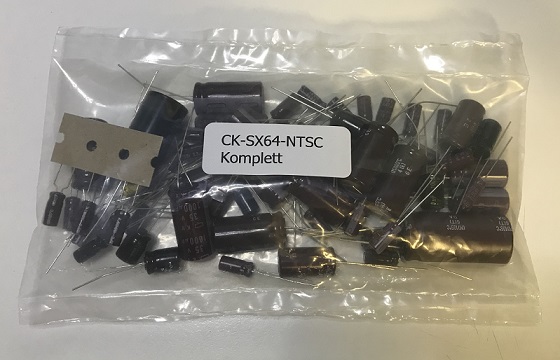

Kondensatorkit till SX64 NTSC 110V

SX-64 CPU PCB #250408-01 #251102 REV.A (PAL/NTSC)
11 x 10uF/50V (C3,C15,C16,C17,C21,C23,C26,C30,C36,C39,C47)

I/O PCB #250409-01 #251106 REV.A (PAL/NTSC)
2 x 10uF/50V (C12,C13)

DISK CONTROL PCB #250410-01 #251433B REV.A (PAL/NTSC)
1 x 1uF/50V (C31) Värde sett på kort (Fel värde i schema 100uF/16V)
1 x 3.3uF/50V (C3)
3 x 10uF/50V (C32,C33,C18)

POWER SUPPLY #250623    (Mitsumi GCMK-65X) 110V
4 x 4.7uF/50V (C28,C31,C34,C27) C28 kan vara keramisk eller poly och behöver då inte bytas
2 x 10uF/50V (C29,C40)
1 x 100uF/50V (C11)
1 x 470uF/200V (C7)
2 x 1000uF/16V (C21,C24)
1 x 2200uF/25V (C17)
1 x 3300uF/25V (C19)
1 x 4700uF/25V (C14)

MONITOR BOARD -DEF and POWER REG PCB 1123 / 1124 A-1 (NTSC)
 1 x 0.22uF/50V (C413)
 1 x 0.47uF/50V (C511)
 1 x 1uF/50V (C911)
 2 x 1uF/50V (C401,C404) *BP* bipolär!
 2 x 4.7uF/50V (C501,C507,C912,N/A) C912=4.7uF/6.3V N/A=May be found on back of PCB
 1 x 4.7uF/400V (C519,C520,C525) C519 and C520 is for YOKE CJ26235-00A
 1 x 10uF/50V (C407)
 1 x 10uF/63V (C907) *BP* bipolär!
 3 x 47uF/25V (C406,C903)
 4 x 100uF/50V (C411,C531,C532,C901)
 5 x 470uF/35V (C414,C523,C524,C904,C905)
 1 x 1000uF/35V (C412)
 2 x 2200uF/25V (C913,C914)

MONITOR BOARD -A/V PCB 1123 / 1124 A-2 (NTSC)
 1 x 1uF/50V (C604) *BP* bipolär!
 1 x 10uF/63V (C202) *BP* bipolär!
 1 x 4.7uF/100V (C206) *BP* bipolär! 3.3uF/50V in schematics, 4.7uF is observed value.
 1 x 0.47uF/50V (C522) May be ceramic or poly
 1 x 1uF/50V (C609)
 2 x 3.3uF/50V (C203,C605)
 1 x 10uF/50V (C603,C606,C610,C616) C606=50V C610=10uF/50V C616=10uF/16V
 1 x 100uF/50V (C602)
 1 x 220uF/25V (C612)
 2 x 1000uF/35V (C201,C608) C201=For YOKE CJ26235-00A!
 1 x 2200uF/25V (C201) Other YOKE!

MONITOR BOARD -CHROMA PCB 1123 A-3 (NTSC)
 1 x 0.47uF/50V (C304)
 1 x 4.7uF/50V (C306)
 1 x 33uF/25V (C315)
 1 x 100uF/50V (C303)

Totalt 73st
